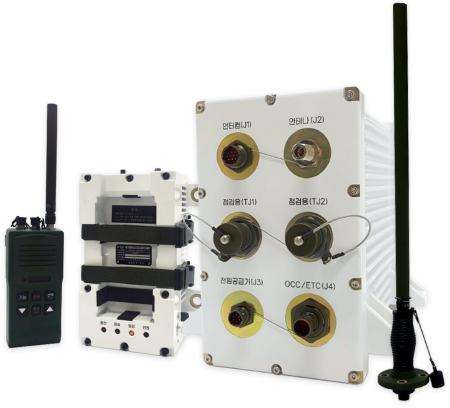

High Speed Radio System

Installed in the K2 armored vehicle, Battlefield Management System (BMS) issupported for the HRS, allowing communication between armored vehicle personneland unloaded troops. The HRS may be operated at a range exceeding 1.5km andwhen coupled with the high powered amplifier, the operating rangemay be increased to over 5km and less then 10km.

Usage
  • Mock Training
  • Mechanized Troops
  • Artillery Squad

High Speed Radio System Distinguishing Features

Battlefield Management System KVMF text message transmission supportSingle network operation support by independent operation mode support for mobile terminals
Digital communication device capable of v simultaneous voice and data transmissionMIL-STD-810 environmental test requirements satisfied (temperature, humidity, vibration, shock, drop test, immersion, etc.)
Independent Ad-hoc network support, supporting rapid network establishment and automatic relayMIL_STD-461 electromagnetic interference test requirements satisfied
Increased distance range with an automatic data relay functionWireless communication base network provided for mock trainings
Supports the ability for all vehicles to share threat information and location information within a second

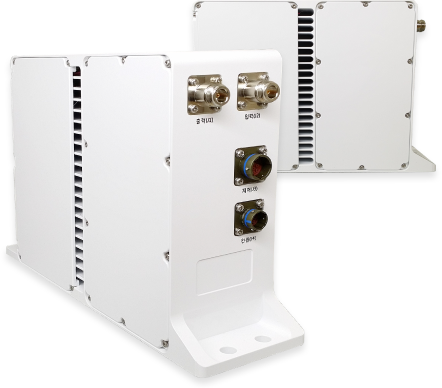

High Powered Amplifier

While coupled with the high speed radio device installed in the K2 armored vehicles,the distance range may be increased up to 10km.

Usage
  • Mock Training
  • Mechanized Troops
  • Artillery Squad

High Powered Amplifier Distinguishing Features

50W transmission outputInput and output strength monitoring system support Self diagnose system support
Two way RS-233C communication support for status information sharingSelf diagnose system support
High temperature, epireflection warning system and power monitoring system support

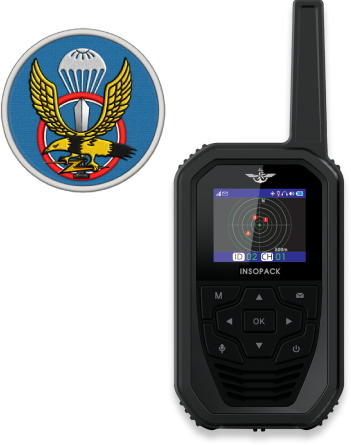

Special Operations Radio

A digital radio capable of ensuring team level wireless communication in special operations, internal command and control, and battlefield situation sharing ability.

Usage
  • Army Special
    Warfare Command
  • Navy Special
    Warfare Command
  • Marine Search
    Party

Special Operations Radio Distinguishing Features

Supports both full and semi duplex communicationUsable with both embedded speakers and ear sets
Auto relay of 3 hopsAmbient noise (battlefield noise) cancelling system
Pre-designated text or manually type text message transmissionEase of mobilization due to miniaturized and weight lightened design
User location and coordinates identification with an embedded GPSCan be used with noise cancelling headsets
User group connection verification when using full duplex modeIngress protection IP67 satisfie
Call function supportedShock/Vibration MIL-STD-810G satisfied
National Intelligence Service (NIS) certified verification required cryptographic module installed (KCMVP)Electromagnetic compatibility KN 301 489-1 satisfied

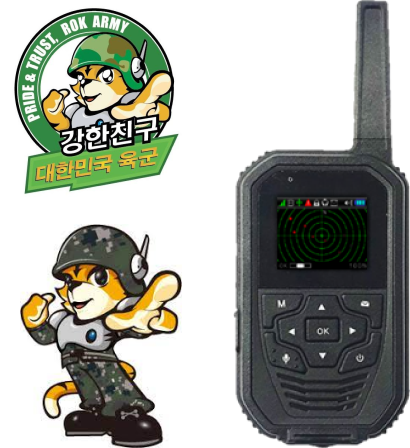

Combatant Radio

Digital radio capable of ensuring wireless communication in internal command and control, and battlefield situation sharing for platoon level troops

Usage
  • Army
  • Navy
  • Special Forces
  • Marine
  • Air Force

Combatant Radio Distinguishing Features

Sharing of voice, text, and location informationUsable with both embedded speakers and ear sets
Automatic relay of 2 hopsAmbient noise (battlefield noise) cancelling system
Pre-designated text or manually type text message transmissionEase of mobilization due to miniaturized and weight lightened design
User location and coordinates identification with an embedded GPSIngress protection IP67 satisfied
Ambient channel navigation and call capabilitiesShock/Vibration MIL-STD-810G satisfied
Emergency call functionElectromagnetic compatibility KN 301 489-1 satisfied
National Intelligence Service (NIS) certified verification required cryptographic module installed (KCMVP)

Data Communication Module (B2CS)

Transmission module for Battalion level Command System (B2CS) that transmits battlefield situation identifications and command and control information in real time

Ad-hoc Netwark

Data Communication Module Distinguishing Features

Voice and data communicationAES-256 encryption
Real time voice communication (Half duplex communication), location information, text receiving and transmission between communication moduleUHF frequency range
Automatic relay of 3 hops1W, 2W ,and 4W output power setting and remote control
Distance rang up to 4kmFHSS function support

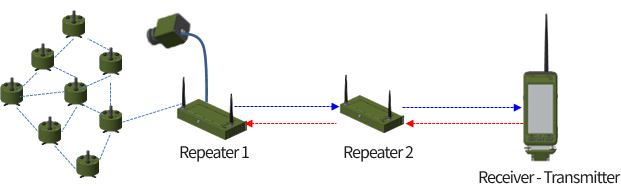

Voice/Data Communication Module (UGS)

Communication module that supports the user to make a timely and appropriate response by transmitting real time video information, sensor information and control message from unmanned location, or Unattended Ground Sensor System (UGS), to the user.

Voice/Data Communication Module Distinguishing Features

Real time transmission and receiving of video, censor information, and control message between repeater and transmitter-receiverRepeater communication setting remote control (Output, channel, speed, power control)
Automatic relay of 2 hopsDistance range of over 2km
System Composition: Composed with a repeater and transmitter-receiver. Both are applied with the same communication module
  • Repeater: Real time transmission or timed transmission of data from a connected censor to a transmitter-receiver.
  • Transmitter-receiver: Receive repeater transmitted signals and controls the function of the repeater

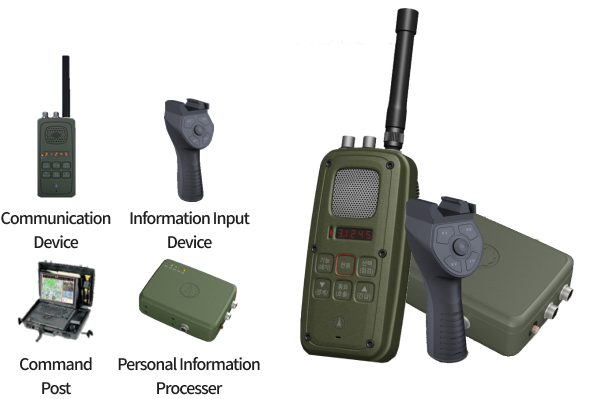

Future Soldier

Allows a team level command and control by forming amultilateral Ad-hoc network, resulting in the sharing of realtime battlefield situation data such as video, voice, and otherdata possible.

Usage
  • Mock Training
    System
  • Special Force
  • Bodyguard System

Future Soldier Distinguishing Features

Quick two way simultaneous wireless communication support.Input control using voice recognition.
Real time sharing of video, voice, and data(location, text, etc.) for up to 5 individualsErgonomically designed information input device, ease of holding
Connection check for users connected to the networkUsable with both embedded speakers or ear-sets
Embedded GPS/GIS, identify user location and coordinatesAmbient noise (battlefield noise) cancelling function
Call function supportMulti video/data/map information combined processing and displaying (Command post)

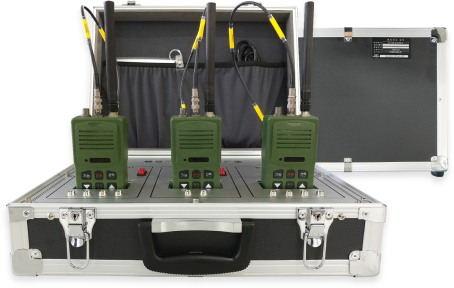

Indoors Charger

Mobile terminals for High Speed Radio System that is installedin the K2 armored vehicle can be charged outside the vehicleusing an separate power and the device is also easy to carry.

Usage
  • Mock Training
  • Mechanized Troops
  • Artillery Squad

Indoors Charger Distinguishing Feature

Simultaneous charging of 2 (or 5) device (2 models)Separate control support for when recovery and charging is required at the same time
Over charge and over discharge detectionCharging, complete, inspection, recovery, power status display support
Recovery function support for when the battery is discharged due to being unused for a long time
